GCF::IGDriveLiteContentModel Class Referenceabstract

This interface provides access to the content-structure of Google Drive

#include <GCF3/IGDriveLiteContentModel>
. More...

Public Types

enum  Field {
  Kind = Qt::UserRole, Id, ETag, SelfLink,
  WebContentLink, WebViewLink, AlternateLink, EmbedLink,
  OpenWithLinks, DefaultOpenWithLink, IconLink, ThumbnailLink,
  Title, MimeType, Description, IsStarred,
  IsHidden, IsTrashed, IsRestricted, IsViewed,
  CreatedDate, ModifiedDate, ModifiedByMeDate, LastViewedByMeDate,
  SharedWithMeDate, DownloadUrl, ExportLinks, IndexableText,
  UserPermissions, OriginalFileName, FileExtension, Md5Checksum,
  FileSize, QuataBytesUsed, OwnerNames, Owners,
  LastModifyingUserName, LastModifyingUser, IsEditable, IsCopyable,
  CanWritersShare, IsShared, IsExplicitlyTrashed, IsAppDataContents,
  HeadRevisionId, Properties, ImageMediaMetaData, IsFolder,
  IsFile, IsSpecialItem, IsFileInfoLoaded, IsFolderContentLoaded,
  MinField = Kind, MaxField = IsFolderContentLoaded
}

enum  ContentVisibility {
  ShowMyDrive = 1, ShowSharedWithMe = 2, ShowTrashed = 4, ShowStarred = 8,
  ShowAll = ShowMyDrive|ShowSharedWithMe|ShowTrashed|ShowStarred
}

enum  SpecialItem { MyDrive, SharedWithMe, Trash, Starred }


Public Member Functions

virtual void setContentVisibility (int flags)=0

virtual int contentVisibility () const =0

virtual void setColumns (const QList< Field > &fields)=0

virtual QList< Fieldcolumns () const =0

virtual GCF::Result refresh (const QModelIndex &index=QModelIndex())=0

virtual GCF::GDriveContent::Item item (const QModelIndex &index) const =0

virtual GCF::GDriveContent::Item item (const QString &id) const =0

virtual QModelIndex indexForId (const QString &id, int column=0) const =0

virtual QModelIndex specialItemIndex (SpecialItem item) const =0

virtual Q_SIGNAL void fileItemLoaded (const QModelIndex &index)=0

virtual Q_SIGNAL void folderItemLoaded (const QModelIndex &index)=0


Detailed Description

This class implements the QAbstractItemModel interface and offers access to MyDrive, Trash, SharedWithMe, Starred root folders and their folders and files. You can think of this class as a QFileSystemModel for Google Drive.

Against each node in the content-tree, this model maintains an internal data structure of all property=value pairs returned by Google Drive API. This can be accessed via the item() method.

In order to arrange files in the google drive file system style content model has 4 top level special items inside which all the contents of google drive is arranged.

  • My drive - This contains all the files created or uploaded by you.
  • Shared with me - This item contains all the files shared with you.
  • Starred - This item contains all the starred items by you.
  • Trashed - This item contains all the files that has been trashed by you.

Once the authentication is complete content model starts fetching contents from GDrive. Content model does not fetch all the drive contents at once. All the above top level items contents are fetched first. If there are folders inside any of the above items then the contents inside those folders are not fetched for the first time. The contents of folders are fetched only when the the items inside the folder needs to be shown.

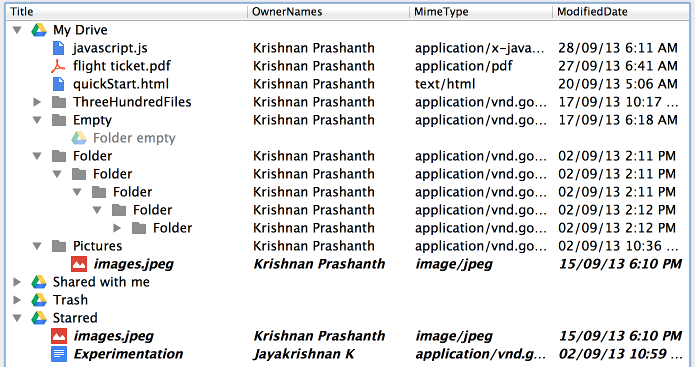

Shown below is an example of how the content-model is visualized in a QTreeView for a Google Drive account.


Member Enumeration Documentation

The enumeration values of Field represents specific property of item i.e GCF::GDriveContent::Item. GCF::GDriveContent::Item represents a file or folder in google drive. Each of them posses the properties represented by the values of enumeration.

This enumeration values are also used to construct columns and order of it using GCF::IGDriveLiteContentModel::setColumns(const QList<int> &columns).

Enumerator
Kind

kind string of item. For example "drive#file". [Role-name: "contentKind"]

Id

id of item. Each item has unique id. [Role-name: "contentId"]

ETag

etag of item. [Role-name: "contentETag"]

SelfLink

selfLink of item. [Role-name: "contentSelfLink"]

WebContentLink

web content link of item. [Role-name: "contentWebContentLink"]

WebViewLink

web view link of item. [Role-name: "contentWebViewLink"]

AlternateLink

alternative link of item. [Role-name: "contentAlternateLink"]

EmbedLink

embed link of item. [Role-name: "contentEmbedLink"]

OpenWithLinks

QVariantMap of open with links of item. [Role-name: "contentIsOpenWithLinks"]

DefaultOpenWithLink

default open with link of item. [Role-name: "contentDefaultOpenWithLink"]

IconLink

link to icon of item. [Role-name: "contentIconLink"]

ThumbnailLink

link to thumbnail of the item. [Role-name: "contentThumbnailLink"]

Title

title of item. [Role-name: "contentTitle"]

MimeType

mime type of item. [Role-name: "contentMimeType"]

Description

description of item. [Role-name: "contentDescription"]

IsStarred

item is starred or not. [Role-name: "contentIsStarred"]

IsHidden

item is hidden or not. [Role-name: "contentIsHidden"]

IsTrashed

item is trashed. [Role-name: "contentIsTrashed"]

IsRestricted

item is restricted or not. [Role-name: "contentIsRestricted"]

IsViewed

item is viewed or not. [Role-name: "contentIsViewed"]

CreatedDate

creation date of the item. [Role-name: "contentCreatedDate"]

ModifiedDate

modified date of the item. [Role-name: "contentModifiedDate"]

ModifiedByMeDate

last modified date by the current user. [Role-name: "contentModifiedByMeDate"]

LastViewedByMeDate

item last viewed by me date time. [Role-name: "contentLastViewedByMeDate"]

SharedWithMeDate

item shared date time. [Role-name: "contentSharedWithMeDate"]

DownloadUrl

item downloaded url. [Role-name: "contentDownloadUrl"]

ExportLinks

QVariantMap of item export links. [Role-name: "contentExportLinks"]

IndexableText

indexable text of item. [Role-name: "contentIndexableText"]

UserPermissions

QVariantMap of user permissions. [Role-name: "contentUserPermissions"]

OriginalFileName

original file name of item. [Role-name: "contentOriginalFileName"]

FileExtension

file extension of item. [Role-name: "contentFileExtension"]

Md5Checksum

md5 checksum of item. [Role-name: "contentMd5Checksum"]

FileSize

file size of item. [Role-name: "contentFileSize"]

QuataBytesUsed

quata bytes used. [Role-name: "contentQuataBytesUsed"]

OwnerNames

string list of names of owners of item. [Role-name: "contentOwnerNames"]

Owners

QVariantMap of owners of item. [Role-name: "contentOwners.

LastModifyingUserName

last modified user's name. [Role-name: "contentLastModifyingUserName"]

LastModifyingUser

QVariantMap map of info about last modifying user. [Role-name: "contentLastModifyingUser"]

IsEditable

item is editable by current user or not. [Role-name: "contentIsEditable"]

IsCopyable

item is copyable by the current user or not. [Role-name: "contentIsCopyable"]

CanWritersShare

can the user with write permission can share file or not. [Role-name: "contentCanWritersShare"]

IsShared

is item shared or not. [Role-name: "contentIsShared"]

IsExplicitlyTrashed

whether the item was explicitly trashed. [Role-name: "contentIsExplicitlyTrashed"]

IsAppDataContents

item has appdata contents or not. [Role-name: "contentIsAppDataContents"]

HeadRevisionId

latest revision of item. [Role-name: "contentHeadRevisionId"]

Properties

list or QVariantMap of properties of item. [Role-name: "contentProperties"]

ImageMediaMetaData

QVariantMap of image meta data. [Role-name: "contentImageMediaMetaData"]

IsFolder

whether item is a folder or not. [Role-name: "contentIsFolder"]

IsFile

whether item is a file or not. [Role-name: "contentIsFile"]

IsSpecialItem

whether item is a special item or not. [Role-name: "contentIsSpecialItem"]

IsFileInfoLoaded

whether the file information is loaded from drive or not. [Role-name: "contentIsFileInfoLoaded"]

IsFolderContentLoaded

whether the contents (folders and files) inside the item is loaded or not. [Role-name: "contentIsFolderContentLoaded"]

MinField

starting Enumeration value of Field.

MaxField

ending Enumeration value of Field.

The enumeration values of ContentVisibility is used to customize the contents of the content model.

Enumerator
ShowMyDrive

show contents of my drive.

ShowSharedWithMe

show contents of shared with me.

ShowTrashed

show contents of trashed.

ShowStarred

show contents of starred.

ShowAll

show all the contents. i.e My drive, Shared with me, Starred and Trashed.

The enumeration values of SpecialItem is used to fetch information about special items(root items on content model).

Enumerator
MyDrive

represents MyDrive root item inside content model.

SharedWithMe

represents SharedWithMe root item inside content model.

Trash

represents Trash root item inside content model.

Starred

represents Starred root item inside content model.

Member Function Documentation

GCF::IGDriveLiteContentModel::setContentVisibility ( int  flags)
pure virtual

Sets the visible contents of the content model to flags. Check GCF::IGDriveLite::ContentVisibility more details about specifying flags.

Parameters
flagscombination of GCF::IGDriveLite::ContentVisibility .
GCF::IGDriveLiteContentModel::contentVisibility ( ) const
pure virtual
Returns
the current content visibility flags set.
GCF::IGDriveLiteContentModel::setColumns ( const QList< Field > &  fields)
pure virtual

Sets the columns of this according to fields. QList<Field> &fields is a list of enumeration values of GCF::IGDriveLiteContentModel::Field. The columns are constructed based on the given enumeration values and in respective order.

Parameters
fieldslist of enumeration values of GCF::IGDriveLiteContentModel::Field based upon which model columns need to be constructed.
GCF::IGDriveLiteContentModel::columns ( ) const
pure virtual

Returns the columns of content model. QList<int> will contain the enumeration values of GCF::JobListModel::Field the order in which the columns are set in the model.

Returns
QList<Field> list of enumeration values of GCF::JobListModel::Field.
GCF::IGDriveLiteContentModel::refresh ( const QModelIndex &  index = QModelIndex())
pure virtual

Refreshes the item corresponding to QModelIndex. If item is a folder then it will also fetch first level of child items inside the that.

Parameters
indexindex of item to be refreshed.
GCF::IGDriveLiteContentModel::item ( const QModelIndex &  index) const
pure virtual

Returns item for that index.

Returns
GCF::GDriveContent::Item for index.
GCF::IGDriveLiteContentModel::item ( const QString &  id) const
pure virtual

Returns item for google drive id of the item.

Returns
GCF::GDriveContent::Item for id.
GCF::IGDriveLiteContentModel::indexForId ( const QString &  id,
int  column = 0
) const
pure virtual

Returns index of item for google drive id .

Returns
QModelIndex for id.

Returns list of index of item for google drive id if file is present in multiple folders.

Returns
QModelIndexList for id.
GCF::IGDriveLiteContentModel::specialItemIndex ( SpecialItem  item) const
pure virtual

Returns item for the enumeration value. GCF::IGDriveLiteContentModel::SpecialIndexlist.

Returns
QModelIndex for enumeration value item.
GCF::IGDriveLiteContentModel::fileItemLoaded ( const QModelIndex &  index)
pure virtual

This signal is emitted when information about a particular item has been loaded.

Parameters
indexindex of item loaded.
GCF::IGDriveLiteContentModel::folderItemLoaded ( const QModelIndex &  index)
pure virtual

This signal is emitted when contents of a folder has been loaded.

Parameters
indexindex of item loaded.
